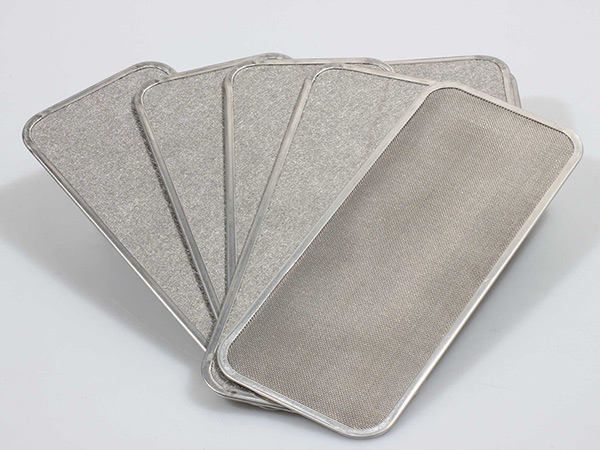

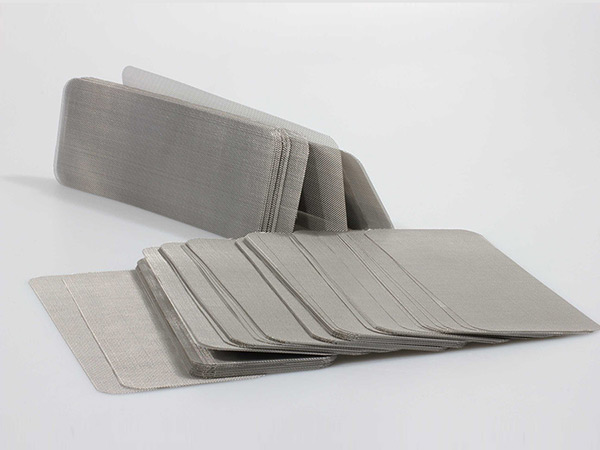

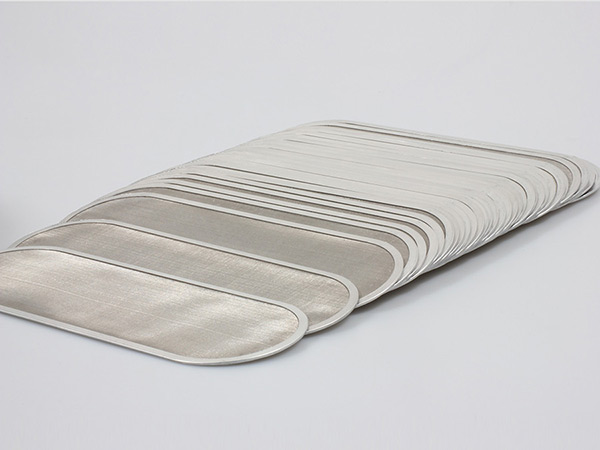

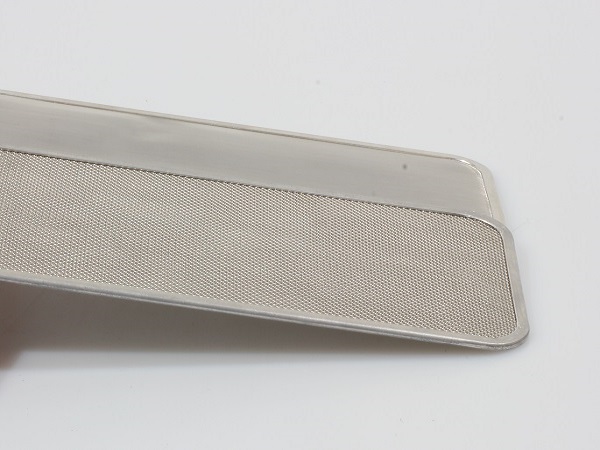

Long screen filters


In fiber and filament spinning process, polymer must be melted and flow into the spinneret or spinning beam through multi-layered wire mesh filters. The function of the filter is filtration, dirt-holding, dispersion and drainage etc.

Filter is made of stainless steel wire mesh, aluminium wire mesh, nickel-plated wire mesh, brass wire mesh, galvanized square wire mesh and other available wire cloth as media. Typically, filter is framed by aluminium, brass, and stainless steel.

Details
Type: single-layer, multi-layer spot-welded, multi-layer framed

Dimensions: custom-made; length of up to 6m available

Material: aluminum frame; AISI 304, AISI 316, AISI 316L wire mesh; other specs. available

Fineness: 1µm – 500µm

Design: up to 7 layers; custom-made material, fineness, pattern
